CO2 Laser Focus Lens USA CVD ZnSe
| Parameter | Specification |
| Material | USA CVD ZnSe (Max 200W) |
| Wavelength | 10.6μm |
| Diameter Options | 12 / 15 / 18 / 19.05 / 20 / 25 & 25.4 / 38.1mm (±0/-0.1mm tolerance) |
| Focal Length Options | 25.4 / 38.1 / 50.8 / 63.5 / 76.2 / 101.6 / 127 / 160 / 190mm (±2% tolerance) |
| Transmittance | ≥99.8% |
| Clear Aperture | >90% |
| AR Coating Reflectivity | <0.2% |
| Scratch-Dig | 20-10 |
| Lens Type | Plano-Convex, Meniscus (All sizes available) |
Product Details

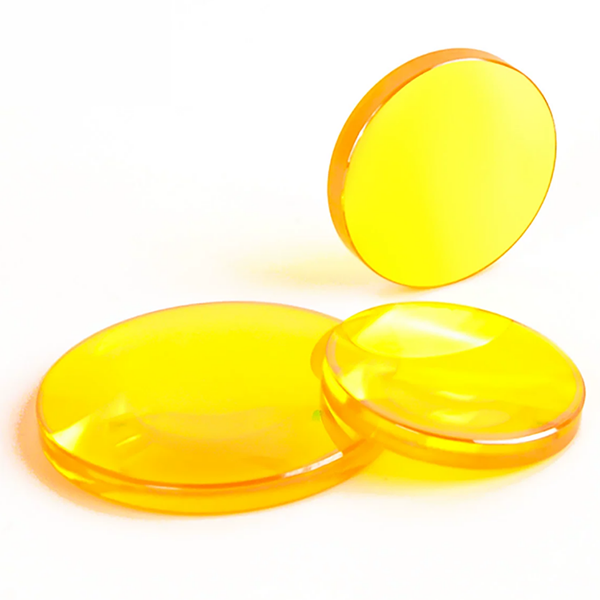

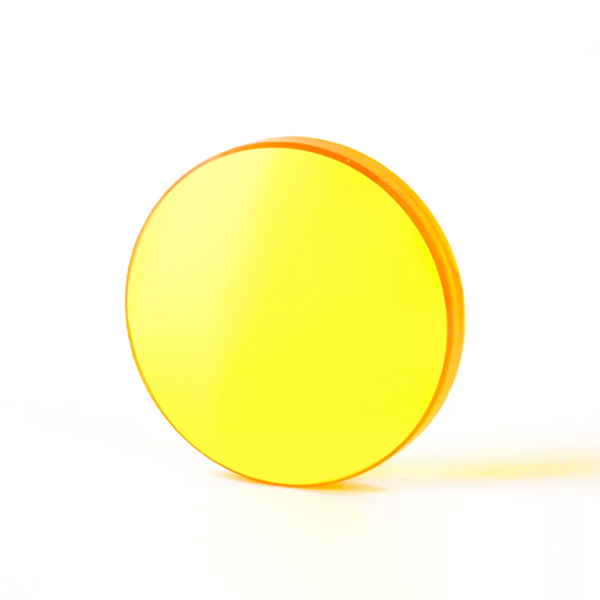

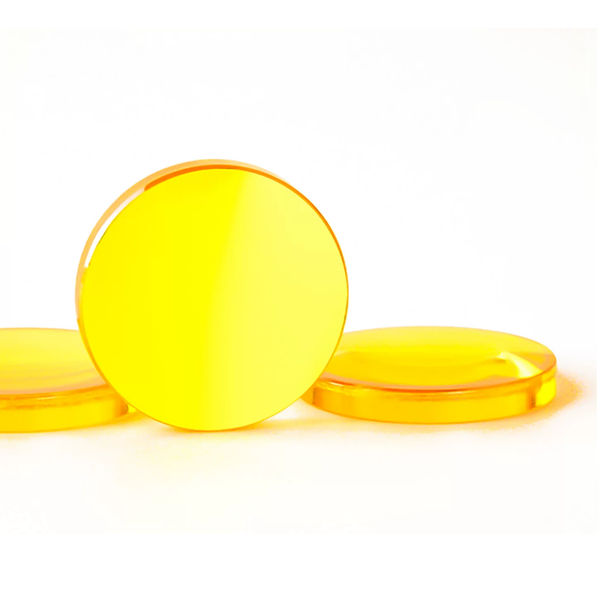

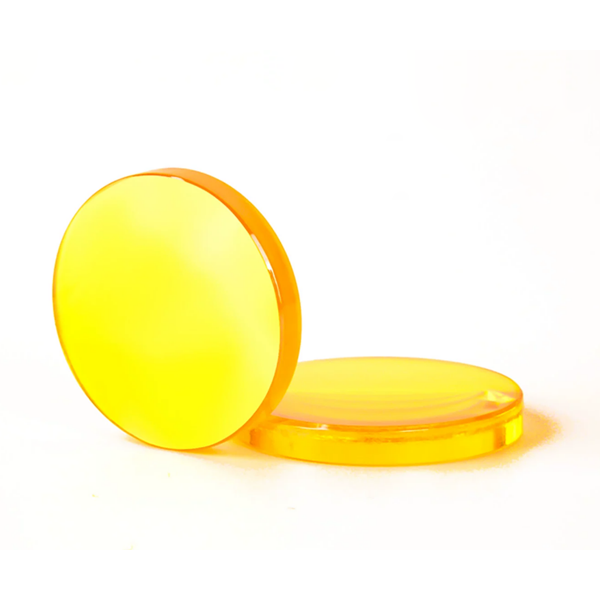

The CO2 Laser Focus Lens (USA CVD ZnSe) is a high-performance optical lens engineered for precise beam focusing in CO2 laser systems operating at 10.6μm. Manufactured from USA-made CVD ZnSe material, it delivers exceptional optical clarity, low absorption, and outstanding thermal resistance, ensuring stable and reliable performance even under high-power laser conditions. This lens is compatible with a wide range of industrial and scientific applications, including laser cutting, engraving, drilling, and marking, making it an ideal choice for users demanding precision, durability, and consistent beam quality.
